Layout option 3 features a fixed rear bed, so your campervan will always be set up and ready to use.
​
It also a Thetford electric flush toilet with privacy door, that also doubles as a dedicated drying space for wet gear.
​
If you're interested in this layout, please enquire for more details or book in for a workshop tour.
2 Seat
2 Berth
Factory
High Roof
Base vehicle: Fiat Ducato 35 Series 2 - L2H2
Registration: 2026
Gear box: Manual (Click here for Auto)
Engine Power: 140HP
Want this 'van to be 4 berth? We can add a pop top to the high roof!
Included Extras:
​
-
10” touchscreen w/Sat Nav
-
Digital 7” cluster
-
Cruise control
-
Leather steering wheel & gear knob
-
270 degrees rear opening doors
​​
​​​​
-
Passenger airbag
-
Electric park brake
-
Keyless entry & go
-
Electric folding mirrors

Conversion Specifications
Living area
​
-
Thetford gloss black 3 ring hob
-
Thetford gloss large black sink
-
Laminate worktop
-
Laminate splashback and control panel
-
Set of 3 pull out drawers – ideal for cutlery
-
Slim cupboard with collapsible bin
-
Pull out drawers x 2
-
Slim cupboard with drop down table and bottle storage
-
Large cupboard – can be upgraded to microwave or oven
-
Top locker storage cupboard x 3 (depth of a plate for practicality)
-
90 litre family size slim fridge freezer – fitted at eye level for ease of use
-
Non-slip extra durable safety flooring
-
Lift up floor storage box
-

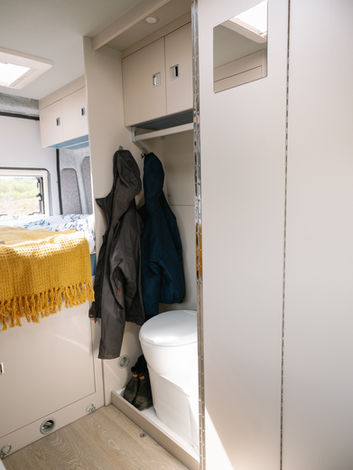

Drying area with drip tray plus hooks and rail – ideal for wet coats and muddy boots
-
Sit down electric flush Thetford cassette toilet with privacy door
-
Drop down extra wide shelf above toilet seat for additional storage - ideal to store a drive away awning
-
Heavily insulated to withstand all season camping
-
Over cab storage
-
Cubby hole storage at eye level behind driver’s seat
-
Cubby hole storage unit above sliding door
-
Table with rounded edges to fit 2 dinner plates (smaller round coffee table option available)
-
Fire extinguisher
-
Smoke and carbon monoxide alarm
-

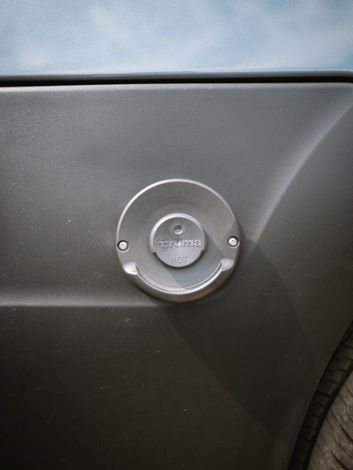

External BBQ point
​​
Seating & Sleeping
-
Driver and passenger swivel seats with lowered seat bases
-
Lovely spacious walk-through from cab to living space
-
Midi Heki roof vent 700mm x 500mm (rear)
-
Mini Heki roof vent 400mm x 400mm (front)
-
Manual step to access seating area (electric upgrade is available)
-
Front seats upholstered in easy clean Aqua Clean protected fabric
-
Transverse rear fixed bed 6ft 5” long x 4ft wide
-
Removable rear bed ladder
-
Open shelving unit above bed with 2 individual reading lights underneath
-
Lockers x 3 opposite bed above sliding window
-
Blind protector cover provided for end of bed window
-
Shelved cupboard / wardrobe located under fixed rear bed accessed from the living space. Can be exchanged for a dog gate
-
Under bed open storage + 2 x cupboard storage accessible from rear of van. Ideal for a dog crate / larger items
-
Option to have a single Mobiframe removable crash tested rear seat fitted on a track system
​​​
Electrical
​
-
100ah Lithium battery package
-
Digital power management system
-
160w German rigid fitted solar panel and regulator - spend more time off grid exploring
-
LED lights
-
LED flexible reading lights x 2
-
LED strip awning light located on sliding side door
-
LED spot awning light at rear doors
-
USB charging ports throughout
-
25 metre mains hook-up cable
​
Heating & Plumbing
​
-
Propex gas blown air heating system
-
Refillable underslung 25 litre gas tank
-
External fresh (75 litre) and waste water (40 litre) tanks with easy access drain
-
Water pump
​
Windows
​
-
Polyvision double glazed windows (condensation, draught and noise free)
-
Blinds & fly screens
-
Thermal cab screens
​​Vehicle
​​
-
Fiat Ducato 35 MH1 Series 2 (L2H2 High roof)
-
Engine 2.2 Mulitjet III 140HP
-
6 speed manual gearbox
-
Travel Seats: 2
-
Berths: 2
-
Length: 5.41m
-
Van Width: 2.05m
-
Width (mirrors in): 2.28m
-
Width (mirrors out): 2.48m
-
Height : 2.64m
-
Gross weight: 3500kg
-
Estimated payload: approximately 500kg
-
Maximum towing weight: 2500kg
​​
Front cab area
​
-
10" touch screen with Sat Nav
-
DAB radio with Bluetooth/ Apple Car Play/ Android Auto
-
Double USB charging point on dash
-
Full digital 7" cluster
-
Chrome air vents
-
Wireless charger
-
Height adjustable single factory passenger seat
-
Automatic climate control
-
Power steering
-
Cruise Control with variable speed limiter
-
Two cup holders and mobile phone storage in centre of lower dashboard
-
230V socket
-
Compartment under driver’s seat
​​​
Style and Safety
​
-
Metallic paint – Iron Grey / Artense Grey
-
Colour coded front bumper
-
Driver & passenger airbag
-
Electric park brake
-
Keyless entry & go
-
Rear view camera
-
360 perimeter rear parking sensors
-
270 degrees rear opening doors
-
Digital rear view mirror
-
Fog lights with cornering function
-
Full LED headlamps
-
Rain and dusk sensors and high beam recognition
-
Electric folding mirrors with heated upper mirror
-
Blind spot assist and cross path detection
-
Deadlocks
-
Lane support system
-
Advanced emergency braking system
-
Traffic sign recognition
-
Driver drowsiness detection
-
Intelligent speed assistance
-
Electronic stability control
-
Perimeter alarm
-
Tyre pressure monitoring system
-
Connected services
-
Side rubbing strips
-
Steel wheels with special wheel trims
-
Aerodynamic kit: central spoiler, air guides, active grille shutter
-
Fix and go tyre repair kit
​​​
Security
​​​
-
Alarm
-
Remote central locking
-
Thatcham approved vehicle tracking system (subscription optional)
-
Fiat comprehensive vehicle 3 year warranty & 5 year conversion warranty included
Interested in this campervan?
To find out more or arrange a viewing please get in touch, or find out where you can come and visit us at a show. ​​
If you're not ready to buy just yet, why not hire our vans so you can test out that Orange Campers quality and attention to detail for yourself?​​
